FLSC-3AR100MB

FLSC-3AR100MB Limited is a manufacturer of high performance EMC/EMP filters and Capacitor solutions for supply to the defence,ICT. - Metalized polypropylene film capacitors - Nickel plated brass case and the brass terminals - ROHS compliant





- Power line filter for 110V/220Vac
- Information security system
- Power supplies
- Computer servers
- Ups power supplies
- Medical equipment

- Shield room





Rated Voltage

AC 250V or DC 1000V

Rated Current

60A / 50℃

Withstand Voltage

2500Vdc / 10sec

Capacitance

0.1㎌ ± 20%

Operating Temperature Range

-45℃ ~ +85℃

Insulation Resistance(500Vdc/60sec)

more than 5000MΩ

 Flammability Corresponding to

UL-94V-0

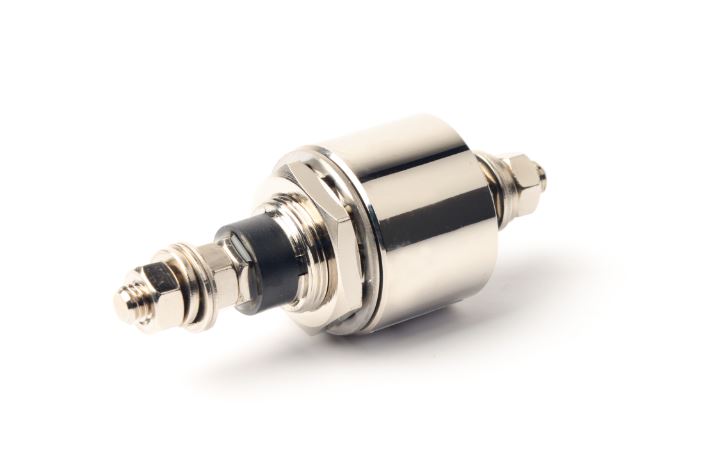

                                                           [Fig.FLS series]
